Description
General Specifications:
Power: 1 HP (Horsepower)
Motor Type: Single-phase or three-phase (depending on the model)
Head Range : 6 to 45 meters (depends on the specific model)
Discharge Range: 120 to 20 LPM (Liters per Minute)
Operating Voltage : 160V – 240V (single-phase) / 380V – 415V (three-phase)
Pipe Size (Suction x Delivery) : Typically 25 mm x 25 mm (1″ x 1″)
Pump Type : Horizontal or vertical submersible pump
Flow Rate: 20 to 130 LPM (Liters per Minute)
Speed: 2880 RPM (Revolutions per minute)
Pump Material: Cast iron, stainless steel, or Noryl impellers depending on model
Bearings: Pre-lubricated ball bearings for smooth operation
Cooling: Water-cooled motor for continuous running
Insulation: Class B or F insulation for motor protection
Applications:
– Domestic water supply from wells or tanks
– Irrigation for small farms or gardens
– Water supply for apartments or housing complexes
– Fountains and water displays
Pipesize : (11/4 X 1)
Discharge- 2 liters per second,
2 year total warranty
One year replacement and one year service warranty

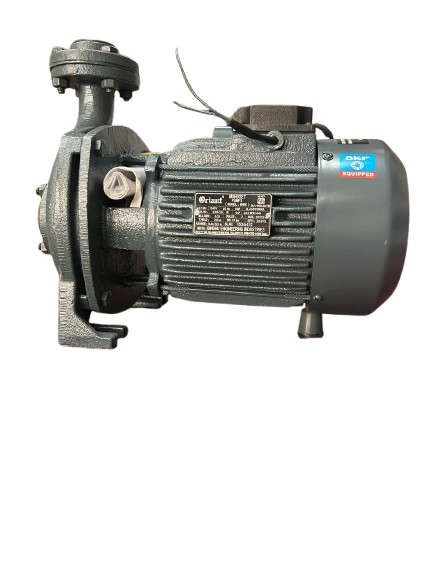

Bindhu Oriant 1HP monoblock centrifugal pump (11/4×1)is a high performance and energy efficient water pump designed for domestic water supply,agricultural irrigation and commercial water pumping applications.This Bindhu Oriant centrifugal pump delivers high water flow with smooth and reliable operation ,making it ideal for tank filling ,garden watering and daily water transfer needs.Built with a durable motor and sturdy construction,this 1HP monoblock water pump ensures long lasting performance with low maintenance and efficient power consumption.
