Description

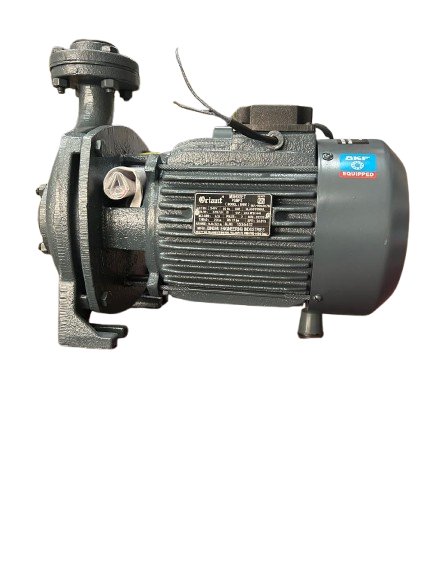

• Model type: 1 HP monoblock centrifugal pump

• Pipe size (suction × delivery): (1 1/4 x1)

• Typical flow / discharge: ~2 L/s ≈ 120 LPM (range ~20–130 LPM )

• Head range: often marketed up to ~60–90 ft (≈18–27 m) depending on exact sub-model / impeller. Product pages show variants (eg. 90 ft models)

• Motor: usually single-phase 1 HP (some variants/retailers may list single- or three-phase options). Operating voltage commonly shown ~160–240 V (single-phase)

• Materials: common components — cast iron casing, brass/forged brass impeller, stainless steel shaft (varies by supplier).

• RPM: ~2800 rpm (typical for 50 Hz motor)

• Warranty: some sellers advertise 1–2 year warranty

• Bindhu Oriant 1Hp monoblock centrifugal pump is a high performance water pump designed for domestic water supply ,agricultural irrigation and garden water applications.This single phase centrifugal monoblock pump delivers high water discharge ,energy efficient operation and reliable performance for homes,farms and commercial water transfer needs.
