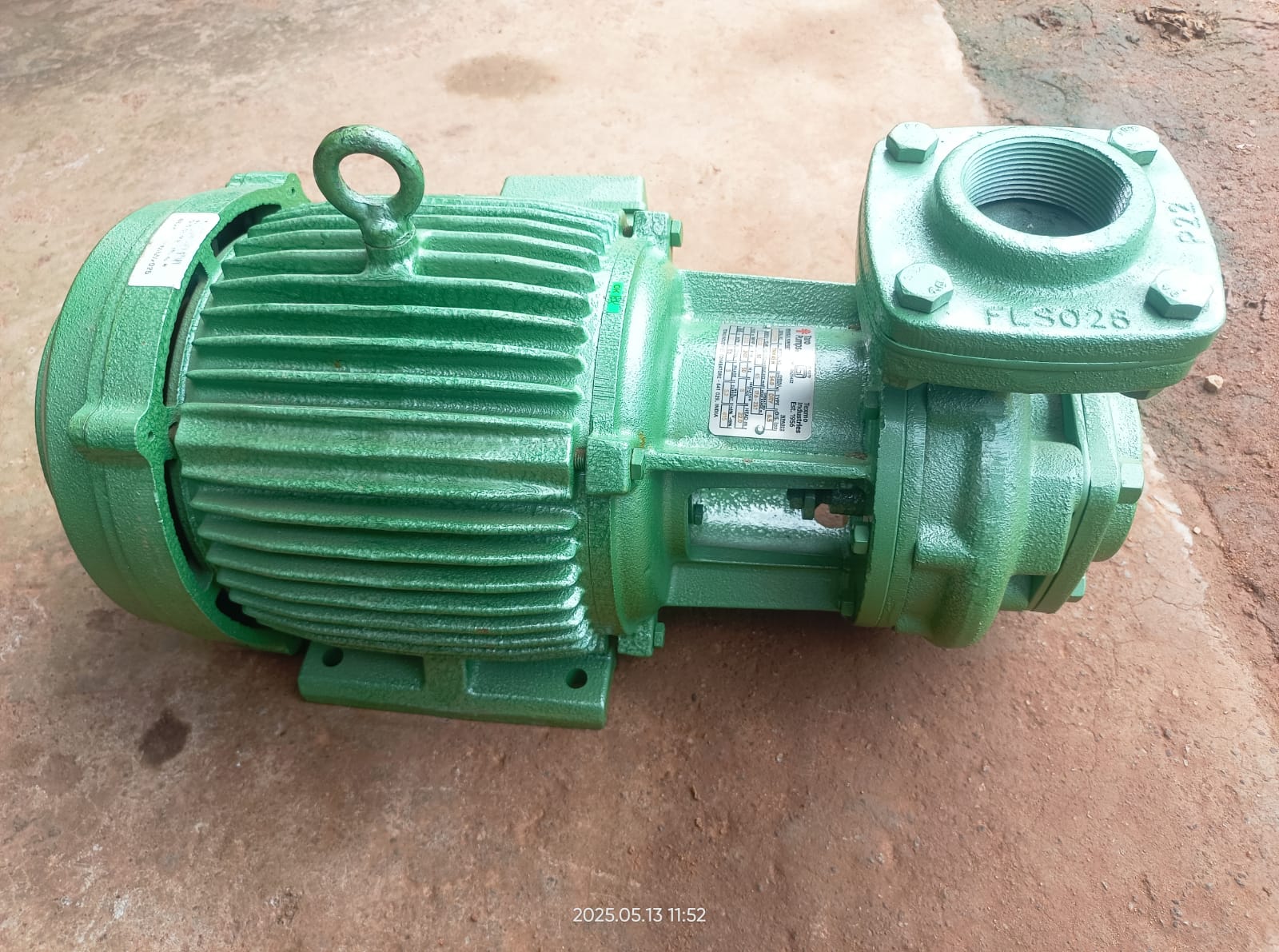

Brand: Texmo (Taro Pumps)
Model: TCP-30
Power Rating: 3 HP (2.2 kW)
Phase: Three Phase
Voltage: 415 V
Frequency: 50 Hz
Speed: 2900 RPM
Pipe Size: Suction – 2½” (65 mm), Delivery – 2″ (50 mm)
Maximum Head: Up to 70 feet (approx. 21 meters)
Discharge Capacity: Varies based on head; for instance, at a head of 35 meters, the discharge is approximately 6000 LPH, decreasing as head increases .
Material of Construction:
Pump Casing: Cast Iron
Impeller: Bronze
Shaft: Stainless Steel
Insulation Class: Class B / F
Protection: IP 44 / IP 55
Cooling: Totally Enclosed Fan Cooled (TEFC)
Warranty: 2 Years
📈 Performance Curve
The performance of the pump varies with the head and discharge. For detailed performance curves and to select the appropriate model based on your specific requirements, it’s recommended to consult the manufacturer’s performance charts or contact a local dealer.
Agricultural irrigation
Water supply for buildings and complexes
Industrial water transfer
Pressure boosting systems
General water circulation
